Unknown data pleasures - Extract information from atom files

Sometimes valuable information often comes in the form of Atom or RSS files, which are essentially plain text formatted in XML. These files serve as a means to distribute content as feeds, ensuring users have access to the latest updates. However, while these files excel at timely information delivery, they can be challenging to decipher and parse. In this blog, I will show how Python can be your key to effortlessly extracting essential insights from these data sources.

Atom files 101

First, let’s locate the data.

In this blog, we’ll be exploring a valuable source of information: public contracts. In particular, we will use the open data regarding public contracts released by the Spanish Ministry for Economic Affairs. These datasets are regularly updated, with new information becoming available each day throughout the month.

Deconstructing Atom files

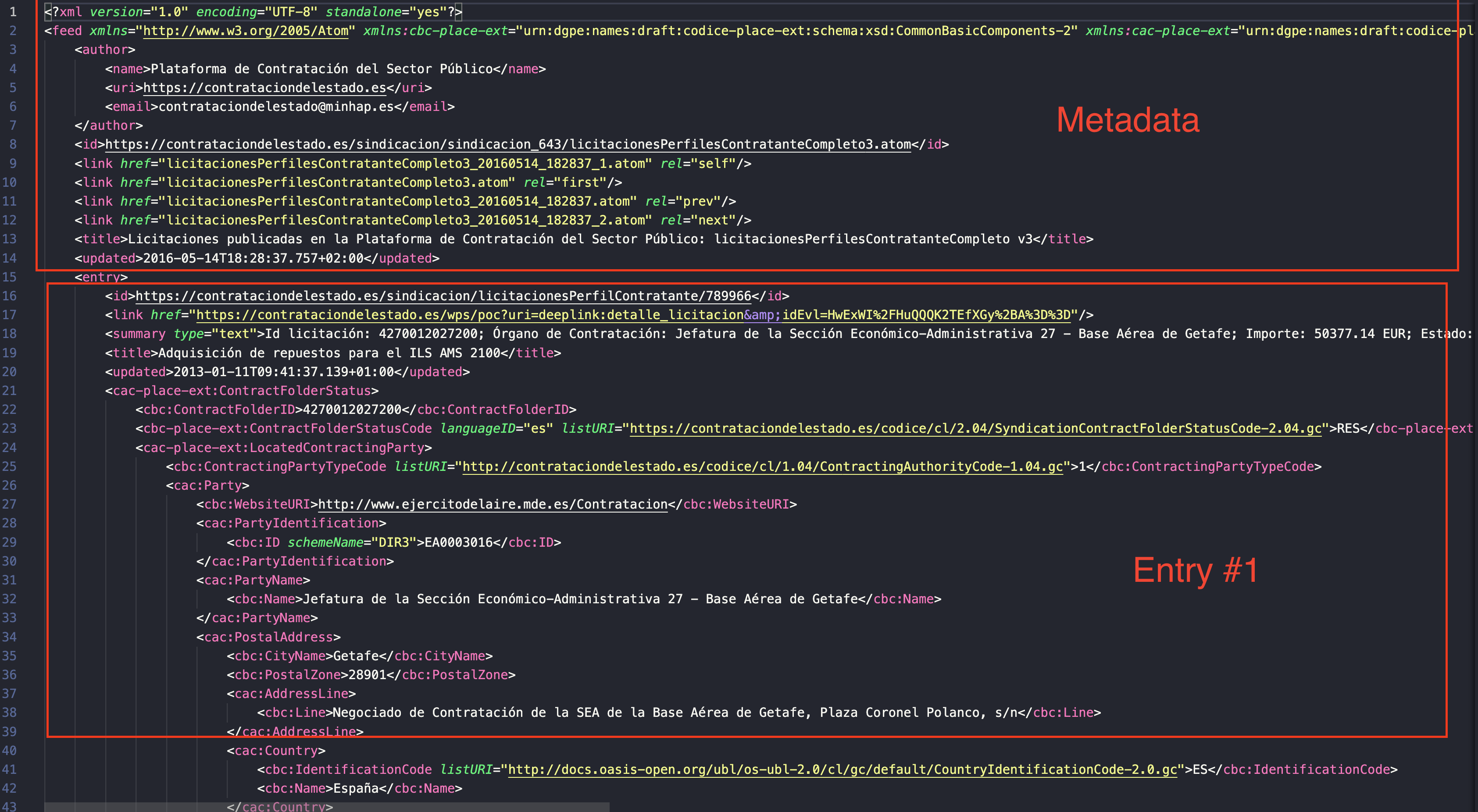

Before diving into the data, it’s essential to understand the structure of atom files. These files consist of two primary components: metadata and a set of entries.

Metadata provide information about document’s author (i.e. the Ministry), the domain’s URI, the date of last update, and more
On the other hand, entries contain detailed information about individual contracts, including contract IDs, prices, dates, and much more. These entries are the core of our data exploration journey.

Diving into the data

To read the data we require atoma and feedparser in Python. These tool enable us to load a <class 'atoma.atom.AtomFeed'> in the system that can be manipulated. This class has different arguments but the most interesting and the one that contains the relevant information is the <entry>. In our case, this class provides information about the different contracts (ID of the contract, price, when the contract was updated, etc… ) involving public institutions in Spain.

Code

import atoma
import feedparser

feed = atoma.parse_atom_file('data/licitacionesPerfilesContratanteCompleto3.atom')

print(type(feed))

<class 'atoma.atom.AtomFeed'>

This class contains several entries that are associated with a contract. To understand how many entries are contained in the .atom file we can use the length attribute to show the number of entries nested in the .atom

Code

print(len(feed.entries))

Parsing the data

Once we have successfully read the data, the next step involves parsing the data so we can obtain contract- related information in a more organised and structured manner. Our approach queries each individual element that compose the entry component of the feed. For example, you can get a glimpse of the main elements of the contract by accessing the summary.value component of the entry.

Code

    print(feed.entries[0].summary.value)

Id licitación: 4270012027200; Órgano de Contratación: Jefatura de la Sección Económico-Administrativa 27 - Base Aérea de Getafe; Importe: 50377.14 EUR; Estado: RES

Retrieving Information for all entries

In the code snippet provided earlier, we observed how to retrieve information for a single contract. However, as our data source comprises details on a sample of 500 public contracts, we need a more efficient approach. To accomplish this, we can define a function that systematically extracts meaningful information for each contract and organizes it into a structured data frame. We can then iterate through all the entries within the file.

The first part of the code (get_values()) extracts relevant information from the contract and stores it in a dictionary that is saved as a data frame. The last part (clean_licitacion()) splits the different elements of the contract:

id of the contract
contractor or institution that perceives the contract
price of the contract
status of the contract

Code

import pandas as pd



def get_values(feed, n):
    objeto = feed.entries[n].title.value
    perfil_contratante = feed.entries[n].id_
    date_update = feed.entries[n].updated
    link = feed.entries[n].links[0].href
    licitacion = feed.entries[n].summary.value

    # Check for missing values and replace them with empty strings
    objeto = objeto if objeto else ""
    perfil_contratante = perfil_contratante if perfil_contratante else ""
    date_update = date_update if date_update else ""
    link = link if link else ""
    licitacion = licitacion if licitacion else ""



    dict = {
        'objeto': objeto,
        'perfil_contratante': perfil_contratante,
        'fecha_actualizacion': date_update,
        'link': link,
        'licitacion': licitacion
    }

    dict_df = pd.DataFrame(dict,index=[0])

    return dict_df


def clean_licitacion(df):

    lic = df[['licitacion']]
    # Split the 'licitacion' column into new columns: 'id', 'organo', 'importe', 'estado'
    split_value = lic['licitacion'].str.split(';', expand=True)


    lic = df

    df_new = pd.concat([df, split_value], axis=1)

    df_new['id_licitacion'] = df_new[0].str.replace('Id licitación: ', '')
    df_new['organo'] = df_new[1].str.replace('Órgano de Contratación: ', '')
    df_new['importe'] = df_new[2].str.replace('Importe: ', '')
    df_new['importe'] = df_new['importe'].str.replace(' EUR', '')
    df_new['estado'] = df_new[3].str.replace('Estado: ', '')



    df_new = df_new[['objeto', 'perfil_contratante', 'fecha_actualizacion', 'link', 'id_licitacion', 'organo', 'importe', 'estado']]

    return(df_new)

This code snippet loops through all the entries in the atom file.

Code

lst_df = []
lst = []
n_values = list(range(1, len(feed.entries)))
for n in n_values:
            dict_df = get_values(feed, n)
            lst.append(dict_df)


result_df = pd.concat(lst, ignore_index=True)

final_df = clean_licitacion(result_df)
lst_df.append(final_df)


        # Create the master_df by concatenating all the DataFrames
master_df = pd.concat(lst_df, ignore_index=True)
master_df.head(3)

	objeto	perfil_contratante	fecha_actualizacion	link	id_licitacion	organo	importe	estado
0	Suministro de energía eléctrica en el Centro d...	https://contrataciondelestado.es/sindicacion/l...	2013-01-11 09:35:38.409000+01:00	https://contrataciondelestado.es/wps/poc?uri=d...	2103/0109	Dirección General del Instituto de Cinematogr...	59722.28	RES
1	Servicio de duplicado de copias de películas, ...	https://contrataciondelestado.es/sindicacion/l...	2013-01-11 09:34:24.393000+01:00	https://contrataciondelestado.es/wps/poc?uri=d...	2103/0133	Dirección General del Instituto de Cinematogr...	64000	RES
2	Gas Licuado Propano 2013/2014	https://contrataciondelestado.es/sindicacion/l...	2013-01-11 09:16:16.416000+01:00	https://contrataciondelestado.es/wps/poc?uri=d...	204152041512012100	Sección de Asuntos Económicos de la Academia ...	49586.78	RES

Visualise the data

Once we have parsed and structured the information, we can make some analysis and obtain some insights. For instance, we can explore what the top institutions by the value of their contracts are.

Code

import plotly.graph_objs as go


master_df['importe'] = pd.to_numeric(master_df['importe'], errors='coerce')
grouped_data = master_df.groupby('organo')['importe'].sum().reset_index()

grouped_data = grouped_data.sort_values(by='importe', ascending=False)
top_contractors = grouped_data.head(10)

fig = go.Figure(data=[go.Pie(labels=top_contractors['organo'], values=top_contractors['importe'],
                             hole=0.5, pull=[0.1, 0])])



fig.update_layout(
    title=dict(text="Top 10 contractors in January 2013", x = 0.45, y=0.9),
    legend=dict(orientation="h", y=-5)
)

# Show the plot
fig.show()

Conclusion

In this tutorial you have seen how to parse and represent information from atom files using Python. This analysis can be replicated to the case of rss files.

I hope you find it useful. Let me know in the comments if you have any questions or need further clarification.
